Single / Double Sided Multilayer Half Hole FR4 Circuit Board PCB Proofing Customized

Name: Single Double Sided Multilayer Half Hole FR4 Circuit Board PCB Proofing Customized
Brand: JIETENG
Price: 1 USD

Brand Name : JIETENG

Model Number : PCBA

Certification : ISO/TS16949/RoHS/TS16949

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 150000 Square Meter/Square Meters per Year

Delivery Time : 5-10 days for delivery

Packaging Details : Inner vacuum packing, outer standard carton

TYPE : SMT Machine Related products

Function : assembling

Pcb size : 330x50-250mm

speed : 26000chips/h

Copper Thickness : 1OZ,2OZ,3OZ,4OZ,5OZ Customization

Laminate : FR-4,Halogen free,High TG etc

Contact Now

Single-sided double-sided multilayer FR4 half-hole circuit board PCB proofing customized

Essential details

Model Number:: PCB PCBA 0001

Type: pcba

Place of Origin:: Guangdong, China

Brand Name:: JIETENG

Supplier Type:: PCB PCBA OEM Factory

Copper Thickness:: 1OZ,2OZ,3OZ,4OZ,5OZ Customization

Product name:: High quality Fr4 HASL electronic pcb manufacturing

Laminate:: FR-4,Halogen free,High TG etc

Surface Finishing:: OSP, HASL,Immersion gold, Immersion Tin etc

Application:: Electronics Device

Solder mask:: Green,Black,Blue,Red, white etc

Capacity:: up to 50,000㎡/month

Blind & Buried vias:: Yes

Inpendence control tolerance:: ±10%

Testing:: 100% E-Testing

Standards:: IPC-A-610 E Class II-III

SMT	Position accuracy:20 um
	Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
	Max. component height::25mm
	Max. PCB size:680×500mm
	Min. PCB size:no limited
	PCB thickness:0.3 to 6mm
	PCB weight:3KG
Wave-Solder	Max. PCB width:450mm
	Min. PCB width: no limited
	Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
	Metal material:Copper , Aluminum
	Surface Finish:plating Au, plating sliver , plating Sn
Press-fit	Air bladder rate:less than 20%
	Press range:0-50KN
	Max. PCB size:800X600mm
Testing	ICT,Probe flying,burn-in,function test,temperature cycling

Product Tags:

HASL FR4 Circuit Board

Multilayer FR4 Circuit Board

Half Hole Hybrid Circuit Board

China Single / Double Sided Multilayer Half Hole FR4 Circuit Board PCB Proofing Customized factory

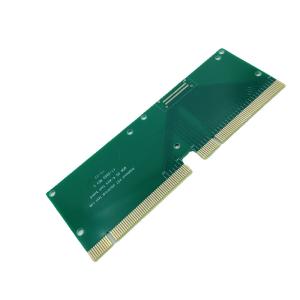

Single / Double Sided Multilayer Half Hole FR4 Circuit Board PCB Proofing Customized Images
